Product Details:
Payment & Shipping Terms:
|
| Type: | Screen Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Product Name: | Stianless Steel Hook Edge Screen,Cloth Wrapped Edge,Wire Mesh Filter Screen | DIAMETER: | Customize Standard 50-300mm |
| Usage: | Liquid Filter,sand Screen | Weight: | According To Your Requirement |
| Warranty: | No,Used To Know | After-sales Service Provided: | Online Support |
| Hole Shape: | Square,Round,Other | ||
| High Light: | 100mesh Woven Wire Mesh Filter,Woven Wire Mesh Filter,100 mesh stainless steel screen |
||
Stianless Steel Hook Edge Screen,Cloth Wrapped Edge,Wire Mesh Filter Screen
The stainless steel wrap-around screen is formed by perforating a stainless steel mesh through a cloth wrapped edge. Has excellent screening efficiency. And the plasticity is high. The overall mesh surface is uniform. It is usually used for sieving fine particles and viscous liquids. The size can be customized.
Product details:
Name: stainless steel Plain woven wire mesh
Material: 304 316 316Lstainless steel

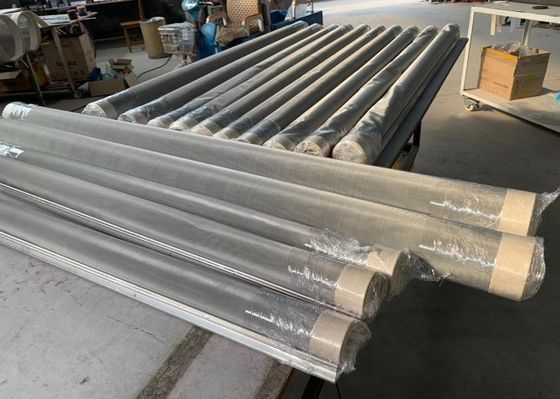

Shape:roll /round plate/square plate
Mesh:1-400mesh
| mesh | wire | hole | weight/per square meter(KG) | |
| Plain weave | 1 | 2mm×2mm | 23.4 | 2 |
| Plain weave | 2 | 1.5mm×1.5mm | 11.2 | 2.25 |
| Plain weave | 3 | 1.0mm×1.0mm | 7.466 | 1.5 |
| Plain weave | 4 | 0.9mm×0.9mm | 5.45 | 1.62 |
| Plain weave | 5 | 0.8mm×0.8mm | 4.28 | 1.6 |
| Plain weave | 6 | 0.7mm×0.7mm | 3.53 | 1.47 |
| Plain weave | 7 | 0.6mm×0.6mm | 3.02 | 1.26 |
| Plain weave | 8 | 0.5mm×0.5mm | 2.675 | 1 |
| Plain weave | 9 | 0.5mm×0.5mm | 2.322 | 1.125 |
| Plain weave | 10 | 0.8mm×0.8mm | 1.74 | 3.2 |
| Plain weave | 11 | 0.7mm×0.7mm | 1.609 | 2.695 |
| Plain weave | 12 | 0.6mm×0.6mm | 1.516 | 2.16 |
| Plain weave | 13 | 0.5mm×0.5mm | 1.453 | 1.625 |
| Plain weave | 14 | 0.4mm×0.4mm | 1.414 | 1.12 |
| Plain weave | 15 | 0.4mm×0.4mm | 1.293 | 1.2 |
| Plain weave | 16 | 0.35mm×0.35mm | 1.237 | 0.98 |
| Plain weave | 17 | 0.35mm×0.35mm | 1.144 | 1.041 |
| Plain weave | 18 | 0.35mm×0.35mm | 1.061 | 1.1 |
| Plain weave | 19 | 0.35mm×0.35mm | 0.986 | 1.16 |
| Plain weave | 20 | 0.3mm×0.3mm | 0.97 | 0.9 |
| Plain weave | 21 | 0.3mm×0.3mm | 0.909 | 0.945 |
| Plain weave | 22 | 0.3mm×0.3mm | 0.854 | 0.99 |
| Plain weave | 23 | 0.25mm×0.25mm | 0.854 | 0.718 |
| Plain weave | 24 | 0.2mm×0.2mm | 0.858 | 0.48 |
| Plain weave | 25 | 0.2mm×0.2mm | 0.816 | 0.5 |
| Plain weave | 26 | 0.2mm×0.2mm | 0.776 | 0.52 |
| Plain weave | 27 | 0.2mm×0.2mm | 0.74 | 0.54 |
| Plain weave | 28 | 0.3mm×0.3mm | 0.607 | 1.26 |
| Plain weave | 29 | 0.3mm×0.3mm | 0.575 | 1.3 |
| Plain weave | 30 | 0.3mm×0.3mm | 0.546 | 1.35 |
| Plain weave | 40 | 0.25mm×0.25mm | 0.385 | 1.25 |
| Plain weave | 50 | 0.2mm×0.2mm | 0.308 | 1 |
| Plain weave | 60 | 0.15mm×0.15mm | 0.273 | 0.675 |
| Plain weave | 70 | 0.14mm×0.14mm | 0.222 | 0.686 |
| Plain weave | 80 | 0.12mm×0.12mm | 0.197 | 0.576 |
| Plain weave | 90 | 0.11mm×0.11mm | 0.172 | 0.544 |
| Plain weave | 100 | 0.10mm×0.10mm | 0.154 | 0.5 |
| Plain weave | 120 | 0.08mm×0.08mm | 0.131 | 0.384 |
| Plain weave | 150 | 0.07mm×0.07mm | 0.099 | 0.367 |
| Plain weave | 180 | 0.05mm×0.05mm | 0.091 | 0.225 |
| Plain weave | 200 | 0.05mm×0.05mm | 0.077 | 0.25 |
| Plain weave | 250 | 0.04mm×0.04mm | 0.0616 | 0.2 |
| Plain weave | 270 | 0.035mm×0.035mm | 0.059 | 0.165 |
| Plain weave | 300 | 0.03mm×0.03mm | 0.054 | 0.135 |
| Plain weave | 325 | 0.027mm×0.027mm | 0.051 | 0.118 |
| Plain weave | 350 | 0.025mm×0.025mm | 0.047 | 0.109 |
| Plain weave | 380 | 0.02mm×0.02mm | 0.046 | 0.076 |
| Plain weave | 400 | 0.018mm×0.018mm | 0.0455 | 0.0648 |
Product advantages:
1.The filter effect is very stable: in the production process selected high-quality raw materials, so that it is not easy to use in the process of deformation;
2, the strength of large: high-quality materials with high pressure, can withstand greater work intensity;
3, simple cleaning: single layer of filter material with a simple cleaning characteristics, especially for backwashing;
4, with high temperature performance: the highest can withstand about 480 ℃ high temperature;
5, with corrosion resistance: stainless steel raw materials itself has a high corrosion resistance and wear resistance;
6, easy to process: high-quality materials, whether it is cutting, bending, stretching, welding and other procedures can be completed very well
