Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wedge Wire Screen | Other Names: | 6mm Support Round Rod 3*7mm Wrap Wedge Wire Stainless Steel Wedge Wire Screen |
|---|---|---|---|
| Application: | Screening, Filtration | Filter Rating: | 80% |
| Slot Size: | 0.05 Mm - 10 Mm(tolerance+/-5um) | Material: | 304 316 Stainless Steel |
| Panel Length: | 500 Mm - 5800 Mm | Panel Width: | 500 Mm - 2000 Mm |
| Edge Finish: | With The Frame; Without Any Frame, According To Request | After-sales Service Provided: | Online Support, Video Technical Support |
| High Light: | 3*7mm wire mesh filter screen,6mm wire mesh filter screen,6mm johnson wedge wire screen |
||

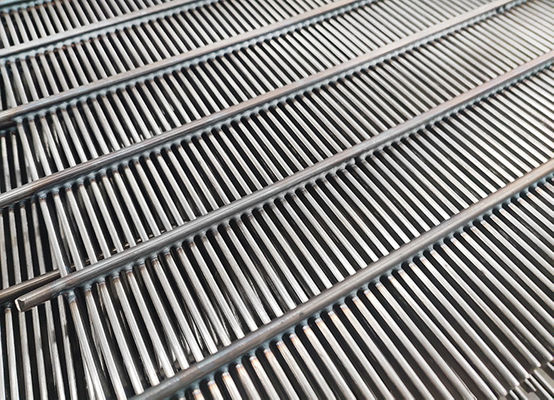

Support Round Rod Wrap wire Wedge Wire Stainless Steel Wedge Wire Screen
wedge wire screen Description
Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels,
are manufactured with stainless steel surface profiles and support profiles.
The surface profile are welded onto support profiles at each intersection in a 90 degree.
wedge wire screen Features:
Wedge wire screen panels are composed of surface profile and support profile.
The surface profile is commonly triangle wire, and the support profile can be triangle wire,
wedge wire, round bar and rectangular bar.
They can suit different machines and can be used in various applications.
wedge wire screen Specification:
Material: stainless steel 304 316 201 310 410
Wrap wire : V wire (wedge wire).
Support profile type: round wire.
Slot size: 0.02 mm - 10 mm.
Pitch: 10 mm - 35 mm.
Panel width: 500 mm - 2000 mm.
Panel length: 500 mm - 5800 mm.
Welded Wedge Wire Screen Advantage:
| Advantage | Flat Surface |
| Advantage 2. | Excellent filtering performance |
| Advantage 3. | accurate distance between supporting profile |
| Advantage 4. | welded production process for solid and strong structure |
| Advantage 5. | Good mechanical properties |
| Advantage 6. | High strength |
| Advantage 7. | corrosion and rust resistance |
| Advantage 8. |
Temperature resistance. |
| Advantage 9. |
Chemical stability. |
