5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable

I'm Online Chat Now

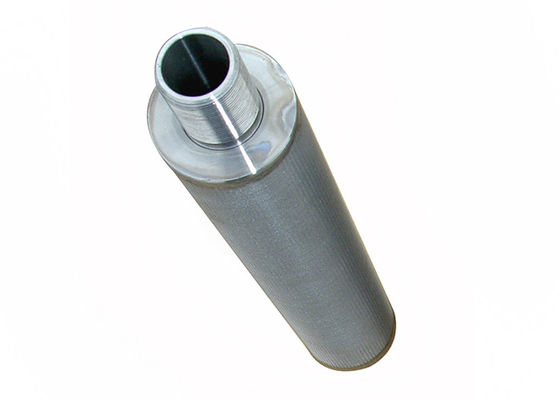

5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable

large.img.alt
small.img.alt small.img.alt

Large Image :  5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable

Product Details:
Place of Origin: China
Brand Name: BAITONG
Certification: ISO-9001
Model Number: BT-005
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD 20-50 per piece
Packaging Details: wooden box
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 100 piece per day
Detailed Product Description
Name: Sintered Mesh Filter​ Material: Stainless Steel 304/316/316L/410
Color: Silver,black Layer: 5/6/7
Application: Filter,screen Hole: 1-99um
Feature: High Filtration Accuracy,durable Customization: OEM,Contract Labor Package Material Processing
International Standard: ISO9001:2000 Technical: Composite
High Light:

5um Sintered Mesh Filter

,

200mm Diamter Sintered Mesh Filter

,

200mm Diamter water filter elements

Stainless Steel 304 5um 600mm 200mm Diamter For Water Filter Sintered Mesh Filter


Sintered Mesh Filter​ Product information:

    Multi-layer sintered metal mesh is a new type of filter material with high mechanical strength and overall rigid structure, which is made of multi-layer metal woven wire mesh and manufactured by special lamination pressing and vacuum sintering.
Its each layer screen mesh crisscross each other, forming a homogenous and ideal filter structure, not only overcome the common low strength, poor rigidity metal screen, mesh shape is not stable, but also on the material of the pore size, permeability and strength characteristics to design reasonable matching and making it has excellent filtration precision, filtration resistance, mechanical strength, wear resistance, heat resistance and processability, comprehensive performance is better than sintered metal powders, ceramics, fibers, filter cloth, filter paper and other types of filtering material.
    Main products we provided, 5-Layer / 6-layer/7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.

Sintered Mesh Filter​  Technical Data Sheet:

Product Name  Medium Stianless Steel Fitler Tube With Sintered Wire Mesh Industry Filter Tube
Application Water filter/Air filter
Material 304/316/316Lor other stainless steel
Color Silver black copper



  No. nominal accuracy actual accuracy permeability pressure(pa)
  (μ m) (μ m) (L/min·cm·pa)
  sw1 1 6-7   4500
  sw2 2 8-9 (1-6) ×10 4300
  sw5 5 11-13 (1-6) ×10 3000
  sw10 10 16-18 (5-10) ×10 2800
  sw15 15 24-26 (5-10) ×10 2000
  sw20 20 28-32 (1-5) ×10 1800
  sw25 25 34-36 (1-5) ×10 1500
  sw30 30 40-45 (1-5) ×10 1230
  sw40 40 50-55 (5-10) ×10 1020
  sw50 50 71-80 (5-10) ×10 860
  sw70 70 86-95 (1-5) ×10 690
  sw100 100 110-120 ≥5 ×10 630
  sw150 150   ≥5 ×10
  sw200 200   ≥5 ×10
  sw300 300   ≥5 ×10


Standard size is 500 * 1000㎜, 600 * 1200㎜, 1000 * 1000mm, 1200 * 1200mm.
Dimensions in the above range can be customized according to user requirements.

5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 0
5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 1


Sintered Mesh Filter​  Advantages:



1. High strength, good rigidity: with high mechanical strength and compressive strength, good processing, welding and assembly performance, easy to use.

2. Uniform and stable accuracy: Uniform and consistent filtration performance can be achieved for all filtration accuracy, and the meshes do not change in use.

Sintered mesh has the characteristics of high air permeability, small resistance and large flux.
It is mainly used for filtration of various gases and liquids.
Because each layer of screen has greater selectivity, its structure can be customized according to user requirements.



Sintered Mesh Filter​  Application:



1. Precise filtration of various hydraulic oils and lubricants in the mechanical industry;

2. Filtration and purification of various polymer melts in chemical fiber thin film industry, filtration of various high-temperature and corrosive liquids in petrochemical industry, filtration, washing and drying of materials in pharmaceutical industry;

3. Application of gas homogenization in powder industry, fluidized plate in iron and steel industry;

4. Dividers in explosion-proof electrical appliances, etc.

5.Used for high pressure backwash oil filter



Product show:



5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 25um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 3





Packing&Shipping:



5um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 45um 200mm Diamter Sintered Mesh Filter , Water Filter Elements durable 5
