| Product Name: | Wedge Wire Water Filter Pipe | Support Rod: | Round Wire Or Square Wire Or Wedge Wire |
|---|---|---|---|
| Application: | Oil & Gas Industry, Refining & Petrochemical, Mining Industry | Filtering: | 20-99% |
| Apllication: | Pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water Treatment | Length: | 10-6000mm |
| Slot Range: | 0.05-20mm | Types: | Filter Cylinder,water Filter Cartridge,filter Elements |
| Width: | 10-1500mm | Material: | Metal, SS304, 304L, 316, 316L |
| High Light: | 20um Wedge Wire Screen Filter,304L Wedge Wire Screen Filter,20um fine mesh screen filter |
||
Anti-Roll Type 20 Um With Thread Connection Wedge Wire Water Filter Pipe
Wedge Wire Water Filter Pipe Characteristics:

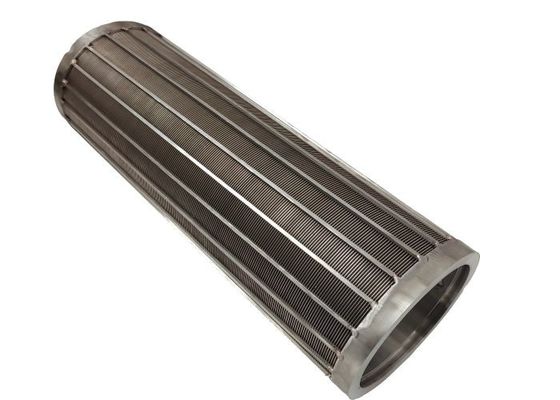

Anti-Roll Type Wedge Wire Water Filter Pipe (internal circumferential wire with external axial support rods)
is a kind of strainers that flow from inside to outside filtration, with smooth working surface inside.
This type wedge wire screen pipe is manufactured by wrapping and welding stainless steel V-shaped profile
wire cylindrically around support rods under automatic specialized wedge wire screen machine, then be made
to screen pipe through cutting, reverse rolled, welded processing.
Product: stainless steel wedge wire screen
Material: Stainless steel 304, 304L, 316, 316L or as your need
Length/Width: Customized on demand
Minimum slot size: 20μm
Thickness: Customized on demand
Welding: ERW
Filter form: Surface filtration
Type: Positive and Anti Roll
| Name |
Anti-Roll Type 20 Um With Thread Connection Wedge Wire Water Filter Pipe |
||||
| OD Range | According to request and the actual flange and strengthen bar | ||||
| ID Normal Size | 176mm,200mm,230mm,255mm.Accroding to request | ||||
| Normal Length |
600mm, 602mm, According to request |
||||
|
Normal Slot |
0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. |
||||
|
Slot Direction |
Radial Direction |
||||
| Slot Size | 0.05mm-35mm | ||||
|
End Finishing |
Flange, , Metal Ring, etc |
||||
|
Note |
Customized According To Requirement |
||||
Wedge Wire Water Filter Pipe Advantage:
•High temperature and corrosion resistance.Can be used in special environments.
▪High open area.
▪Structural advantage,non-clogging.It has the V-shaped slot formed.
▪Good filtration performance.
▪Structure more sturdy.
Its application is very extensive:
1.Water treatment
2. Mine
3. Food and drinks
4. Chemical industry
5. Oil exploitation
6. Sugar production
It is also a material for making the drum screen(for Manure separator).
