Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wedge Wire Screen | Other Names: | Screw Press Screens,vee Wire Screen,slotted Wedge Wire Screen For Screw Press Separator |
|---|---|---|---|
| Usages: | Used In Screening, Filtration, Dehydration And Desliming Operations For Sieving And Filtration | Filter: | 99% |
| Aperture Size: | 0.05 Mm - 10 Mm(tolerance+/-5um) | Material: | 304 316 Or 316 L Stainless Steel |
| Panel Length: | 500 Mm - 3000 Mm | Panel Width: | 500 Mm - 2000 Mm |
| End Finish: | With The Frame; Without Any Frame, According To Request | After-sales Service Provided: | Online Support, Video Technical Support |
| High Light: | 1mm Gap Wedge Wire Screen,500mm Length Wedge Wire Screen,500mm Length Welded Wedge Wire Screen |
||
For Filtration Separation And Retention Media Welded Wedge Wire Screen
Wedge Wire Screen Description

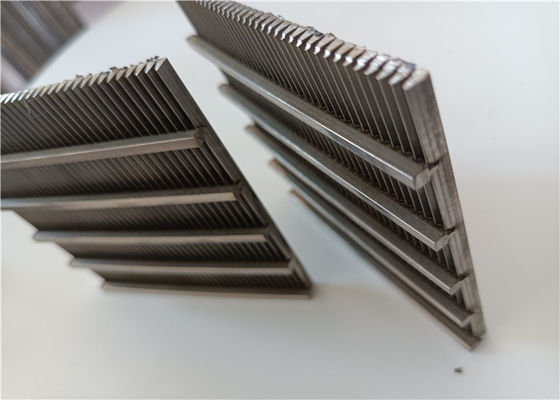

Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels,
are manufactured with stainless steel surface profiles and support profiles.
The surface profile are welded onto support profiles at each intersection in a 90 degree.
Welded Wedge Wire Screen Features:
Wedge wire screen panels are composed of surface profile and support profile.
The surface profile is commonly triangle wire, and the support profile can be triangle wire,
wedge wire, round bar and rectangular bar.
They can suit different machines and can be used in various applications.
Welded Wedge Wire Screen Specification:
Material: stainless steel.
Surface profile type: triangle wire.
Support profile type: round bar, rectangular bar, wedge wire, triangle wire.
Slot size: 0.05 mm - 10 mm.
Pitch: 10 mm - 35 mm.
Panel width: 500 mm - 2000 mm.
Panel length: 500 mm - 3000 mm.
Wedge Wire Screen Advantage:
| Advantage 1. | Flat Surface |
| Advantage 2. | Excellent filtering performance |
| Advantage 3. | accurate distance between supporting profile |
| Advantage 4. | welded production process for solid and strong structure |
| Advantage 5. | Good mechanical properties |
| Advantage 6. | High strength |
| Advantage 7. | corrosion and rust resistance |
| Advantage 8. |
Temperature resistance. |
| Advantage 9. |
Chemical stability. |
