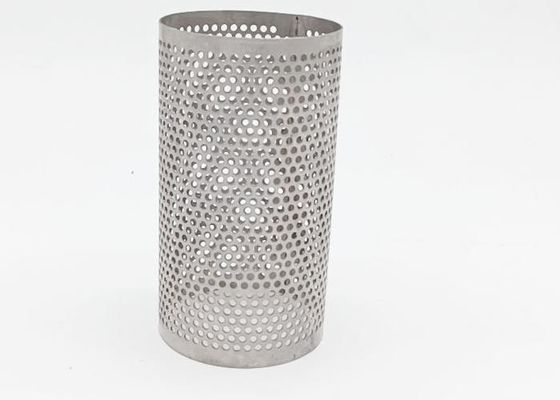

3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded

I'm Online Chat Now

3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded

Product Details:
Place of Origin: China
Brand Name: BaiTong
Certification: ISO9001
Model Number: BT-PR03
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Wooden Box or Pallets
Delivery Time: 5~25 days
Payment Terms: T/T
Supply Ability: 1000 pcs per day
Detailed Product Description
Product Name: Strainer Basket Material: Stainless Steel 304 316 316L
Usage: Water, Oil, Gas, Base, Air And Water Etc Application: Screening,decoration, Sifting, Filtration, Drying, Cooling, Cleaning
Structure: Cylinder Hole Shape: Round,Square,etc
Filter Rating: 40%-90% Thickness: 0.6 Mm-6 Mm
Technique: Perforated And Welded Feature: Durable, Excellent Filtration Performance
High Light:

3mm Hole Perforated Metal Pipe

,

304 SUS Perforated Metal Pipe

,

3mm Hole water filter tube

Perforated Metal 3mm 304 Sus Pipe Shape For Water Filter Filter Tube

Filter Tube  Details:
Perforated round hole basket strainer filter is a device that uses a mesh screen to filter out foreign particles in a horizontal pipeline. These particles are then removed from the strainer and will not make their way into downstream equipment like pumps, valves, and traps. Read the following to learn more about basket strainers, how they work, and how to choose the best strainer for your application.

Product Name Perforated metal pipe metal tube,filter support element,Aperture 3mm for filter
Material 201,205, 304,304L,316, 316L Galvanized , iron ,low carbon steel  or customized
Micron Size 20 25 50 75 100 120 125 150 160 220etc
Feature Oxidation and corrosion resistant.
Acid and alkali resistant
Long service life
Big pressure resistant
Sample Available !!! Any need, please feel free to contact me !!!



Filter Tube Description:

Basket filters & strainers permits the straining & filtering of a wide variety of fluids and retains solid
components of almost any size. All baskets are easily removable &easy-to-clean.
Basket strainer elements can be offered in single cylinder, double cylinder, multi cylinder & pleated design
depending upon requirement of the application. They are constructed with filter housing, filter element
supported with perforated cage, positive sealing arrangement to avoid any bypass & choice of
end connections.

Filter Tube Characteristics:

Basket strainers are installed to protect equipment from damage caused by unwanted debris that may be
in the pipeline. The unwanted debris could be dirt or other foreign particles that make their way into the
process fluid. Typically, basket strainers are installed in horizontal pipelines and in situations where high
flow capacity is required.
These strainers are installed upstream of equipment like pumps, control valves, and traps,
keeping potentially corrosive or damaging debris from making its way down the line.
They can be installed alone or in a series to increase filtration.
They may come with a single chamber (simplex strainers) or multiple chambers (multiplex strainers).

Filter Tube Application:

1. Automotive
2. Food and Beverage
3. Chemical Processing
4. Paints, Inks, Resins and Coatings
5. Electronics
6. Petrochemicals
7. Municipal Water Treatment
8. Industrial Water Treatment
9. Pulp and Paper

10.Filter
11.Decorative

Filter Tube Advantage:

Installing a basket strainer into a pipeline system ensures that equipment downstream is protected
from unwanted and potentially damaging debris. Choose a mesh size slightly smaller than the particles
you wish to filter, to ensure that any foreign particles are trapped in the basket. You’ll also want to consider
other factors, like the temperature and pressure requirements, and the type of liquid or gas passing through
the basket strainer.
Be sure to maintain your basket strainer by checking pressure periodically and scheduling regular cleanings
as well. This small investment will have lasting impact on downstream equipment.
3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded 0

Packing Details:


3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded 1
3mm Hole 304 SUS Perforated Metal Pipe , Water Filter Tube Welded 2
