| Product Name: | Johnson Wire Screen | Material: | SS304, SS304L, SS316, SS316L, SS321 |
|---|---|---|---|
| Technic: | Argon Arc Welding | Application: | Filters, Screen, Mining,waste Water Treatment |
| Aperture Size: | 0.025-30mm | Feature: | Anti-corrosion, Durable, Corrosion Resistant, Heat Resistant, Water Well Drilling Cylinder |
| Filter Rating: | Up To 99% | Length: | Normally 3m,6m,2.9 Or 5.8m |
| Support Wire: | Round,V Wire, Rectangular | Profile Wire: | V Shaped Wire |
| Diameter: | Ranging From 20 To 1200mm | End Connection: | Plain Beveled Ends For Butt Welding Or Threaded Coupling Or Flange |
| High Light: | non clogging johnson screen pipe,non clogging surface johnson screen pipe,stainless steel johnson screen pipe |
||

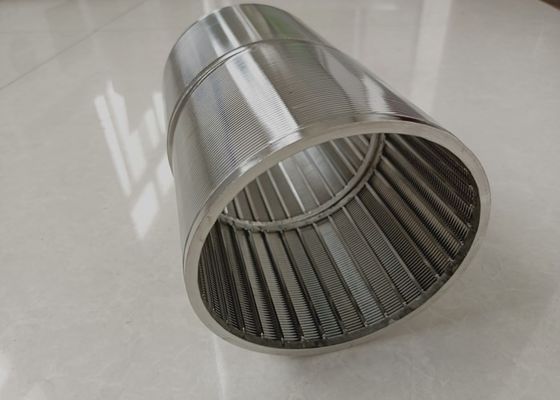

Non-Clogging Surface Stainless Steel V Wire Johnson Screen Pipe
Johnson Screen Pipe Description
Johnson Screen Pipe For Filteration is made by winding cold-rolled wire, approximately triangular in cross
section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding,
producing rigid one-piece units having high strength characteristics at minimum weights.
The wire is attached to the rods by welding, producing rigid one-piece units having high strength
characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous
slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and
promote more effective development.
Johnson Screen Pipe Specification:
| Material |
mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material. |
| Grade | 2205, 304,304L, 316L |
| O.D | 89mm 117mm 219mm 273mm 325mm |
| Size | 3-1/2" 4-1/2" 8-5/8 " 10-3/4" 12" |
| Slot size | 0.025mm-30mm, arbitrarily selected screen size to meet different construction requirements. |
| Length | 2.9m, 3m, 5.8m, 6m |
| Connection Mode |
threaded connection, flange connection,welding ring |
| Diameter | 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm. |
| Wire Shape | V Shape |
|
Characteristics |
Not easy to jam Slot even Strong corrosion resistance |
Johnson Screen Pipe Characteristics
♦Structure principle: the screen pipe is composed of spiral surface wire wound on the axial support rod,
and the support rod and the surface wire are connected with each other by resistance welding.
♦Good adaptability of temperature change: obviously, compared with ordinary plastic filter element,
the temperature application range of stainless steel wire wound screen tube of leiler company is much
wider than that of plastic filter element.
♦ High strength: because this element adopts the structure of stainless steel wire, it has high strength.
This kind of screen tube can be cut on the grinding wheel cutting machine, and can also be machined
on the lathe, without loose deformation.
♦Corrosion resistance: for neutral water, acid water, alkaline water, hydrochloric acid, sulfuric acid, salt
and so on, if these materials are properly selected, the filtration equipment can be operated economically
and safely.
Johnson Screen Pipe Application:
Johnson Screen Pipe Packing&Delivery:
