316 Stainless Steel Wedge Wire Net For Static Garbage Separation

I'm Online Chat Now

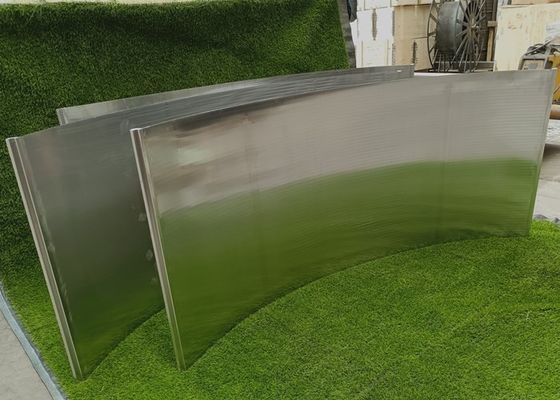

316 Stainless Steel Wedge Wire Net For Static Garbage Separation

small.img.alt small.img.alt

Large Image :  316 Stainless Steel Wedge Wire Net For Static Garbage Separation

Product Details:
Place of Origin: China
Brand Name: BaiTong
Certification: ISO9001
Model Number: Static Sieve Wedge Wire Screen
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiated
Packaging Details: Wooden Box or Pallets.
Delivery Time: 5-25days
Payment Terms: T/T
Supply Ability: 1000 square meter per day
Detailed Product Description
Product Name: Wedge Wire Screen Different Names: Screw Press Screens,static Screen, Curved Bend Screen Filter
Usages: Wastewater Filter, Water Filter Parts, Filter For Koi Pond Filtering: 0.05 Mm , 0.08 Mm , 0.1 Mm , 0.15 Mm, 0.2 Mm, 0.25 Mm,0.3 Mm.....etc
Color: Stainless Steel Color Material: 304 Or 316 L Stainless Steel
Length: 2.5~40", 5/10/20/30/40Inch, 40", 10'' 20'' Slot Size: 0.025mm--50mm
Function: Pre-filter, Filtering Suspended Matter, Water Purification Plant, Producing Fresh Water, Water Treatment After-sales Service Provided: Online Support, Video Technical Support
High Light:

316 stainless steel wedge wire net


stainless steel wedge wire net 316


garbage separation stainless steel wedge wire

Stainless Steel 316 Net For Static Garbage Separation Wedge Wire Screen



Wedge Wire Screen Description


Static Garbage Separation Wedge Wire Screen are used in static sieves for either dewatering or


As the slurry flows over the inclined screen surface, the perpendicular layout of the wires to the flow,

allows for solids to be retained while liquid passes through the screen.

Made from Vee-Wire screens,the 120 Sieve Bend Screen can provide up to 50 percent more open area

with a narrower wire profile.

With a number of manual-handling restrictions. Johanson Screens has developed an innovative split-sieve


This design offers a simple, economical benefit by reducing the physical size and the weight of the screen.


Wedge Wire Screen Parameters:


1. The arc angle of the screen surface: 120° or selected arc

2. Screen width: 50um, 75um, 100um, 150um, 200um

3. Material handling capacity: 34~46m3/h4, feeding pressure: 0.2~0.4MPa

5. Screen width: 585mm, 710mm, 825mm

6.The arc radius of the screen surface: 762mm

7. The screen surface can be used in both directions and has a long service life.


Name Wedge Wire Screen

Stainless Steel Silver color or can be customized accroding to

Customer's specific request

Size Profile wire 2*3mm, 3*4mm; Support Wire: 3*4, 3*5mm or customized
Material Stainless steel 304 316  316L or as  customer's request


Wedge Wire Screen Features:


1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency.
2. Non plugging,to make sure the smooth circulation.
3. Slot sizes ranging form0.05mm to 20mm.
4. Durable and capable of carrying heavier loads without support structures.
5. One piece construction.
6. Wide range of materials.
7. Easy to clean,long service life,safe and reliable,low comprehensive cost.


Wedge Wire Screen Uses:


Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and

other industries.

Screening liquids, powders and other materials. Petroleum, chemical, metallurgy, mining,

pharmaceutical purification, Drilling fluid purification.


Wedge Wire Screen Packing&details:
316 Stainless Steel Wedge Wire Net For Static Garbage Separation 0
316 Stainless Steel Wedge Wire Net For Static Garbage Separation 1
