| Material: | SS304 Or SS316 | Slot Size: | 0.05-100MM Or Customized |
|---|---|---|---|
| Screen End: | Plain, Bend | Diameter: | 29-1200MM |
| High Light: | wedge wire filter ss304,koi pond wedge wire filter,koi pond sieve bend |
||

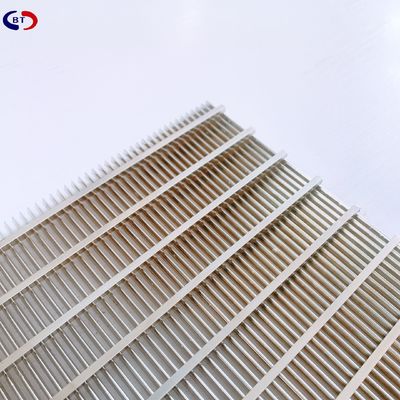

V-Shaped SS304 Material Koi Pond Wedge Wire Screen
Wedge Wire Screen Introduction
Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles.
The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
Wedge Wire Screen Description
Wedge Wire Screen is a welded steel structure, mainly used for filtration, separation and retention media.
1.Material: 304 316 316L stainless steel wedge wire
2.Slot: 0.2mm-5mm
3.Profile wire size: 1x2mm, 1.5x2.5mm, 2x3mm, 3x4mm etc
4.Support bar size: 2x3mm, 3x4mm, 3x5mm etc
5.If you have drawing, please send us.
Wedge Wire Screen For Filtering And Grain Drying Filter details:
mine screen mesh industry newly developed products,which features easy to leakage,
wear and corrosion resistance. Acid, alkali, high temperature,pulling force and wearability.
| Name | V-Shaped SS304 Material Koi Pond Wedge Wire Screen |
| Length Range | up to 6000mm |
| Width Range | up to 6000mm |
| Slot Range | 20 um to 3000 um (Tolerance:+-5um) |
| Other Shapes | Can cut to any shape according to requirement, such as round, semicircle, sector, and so on. |
| Wedge Wire | 0.5x1.5, 0.75x1.5, 1x2, 1.5x2, 2x3, 2x4, 3x5. |
| Support wire |
1.5x2.5, 2x3, 1.8x2.5, 2x4,3x5, 3x6,3x10,4x7 |
| Material | SS304, SS304L, SS316, SS316L, SS321 or as customer's request |
Wedge Wire Screen Function:
Wedge wire screen functions as support grid, sieve bends, baskets, nozzles, lateral assemblies,
resin traps and sand screens to be used in industrial applications, including gas, oil, chemicals,
petrochemical, drilling, mining, food or water processing and paper production.
